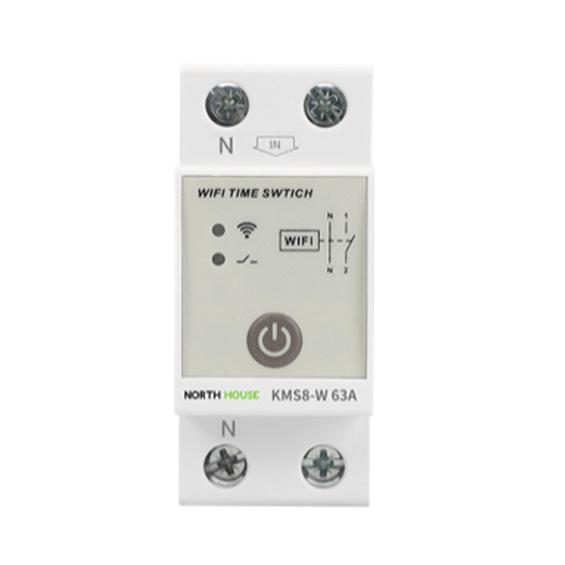

WiFi time-control relay

It turns on and off the load periodically and regularly, and usually controls household equipment such as lights and appliances.

Features :-

  • Support access to Tuya’s App Tuya smart.
  • The on and off time of the load can be conveniently set through the App.
  • On and off can be controlled manually.
  • The cycle on / off can be set during the on time.
  • DIN rail mounting.
WiFi time-control relay

Specifications

Technical parameters
Product number KMT8-WS
Function WiFi time-control relay
Supply terminals A1-A2
Voltage range AC/DC 12-240V(50-60Hz)
Burden AC 0.09-3VA/DC 0.05-1.7W
Supply voltage tolerance -15%;+10%
Supply indication green LED
Time setting APP
Time deviation ±30s
WIFI connectivity 802.11 b/g/n 2.4GHz
Output 1×SPDT
Min.breaking capacity DC 500mW
Output indication red LED
Mechanical life 1×107
Electrical life(AC1) 1×105
Operating temperature -20℃ ~ +55℃
Storage temperature -35℃ ~ +75℃
Mounting/DIN rail Din rail EN/IEC 60715
Protection degree IP20
Operating position any
Overvoltage cathegory III
Pollution degree 2
Dimensions 90×18×64mm
Weight 62g
Max.cable size(mm2) 1×2.5mm2 2×1.5mm2 0.4N·-m
Standards GB/T14048.5,IEC60947-5-1,EN 61812-1
